Consolidation of a Saturated Porous Medium Experience

Affordable and accessible experiments with visualization (AAEVs) are simple, yet highly visual experiments that allow students to learn through an inquiry-based approach. They are structured to give students the possibility of 'seeing' fundamental geotechnical concepts in their classrooms, thus providing a strong source of motivation and increasing students' intuition of the concepts being taught. Their simple and inexpensive setup makes AAEVs highly accessible and ideal for widespread classroom use. Designed by undergraduate and high school students (see “Working on AAEVs: The High School Student Experience”), these experiments and corresponding simulations will become valuable learning tools by providing students with the opportunity of actually 'seeing' how theory and experiment match well.

Currently, the following students have worked on AAEVs: Winston Luo (Glenbrook South High School, summer 2007), Andrew Jacobs and Michael Tarczon (Glenbrook South High School, summer 2008) and Jeffrey Gellis (REU, summer 2008).

Below is a list of AAEVs that are finalized or currently in progress:

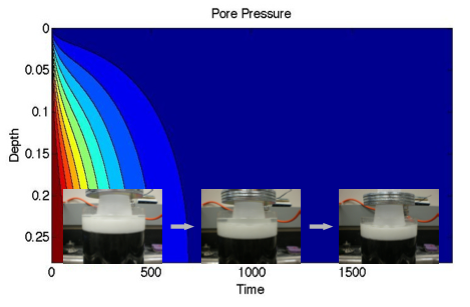

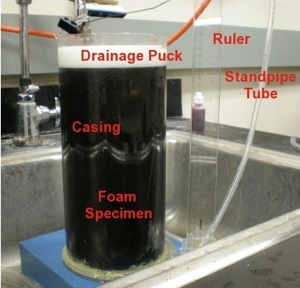

The Consolidation of a Saturated Porous Medium Experience introduces the concepts of consolidation (setup shown left) and Terzaghi's equation. As shown below, pore pressure variation, obtained from a simulation involving Terzaghi’s equation, matches well with experimental observations.

For more information, please see the following report: Consolidation.

The Tank: Water flow through porous media

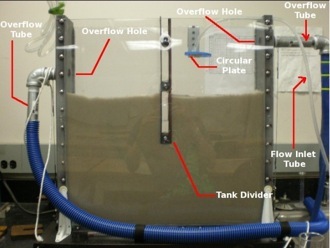

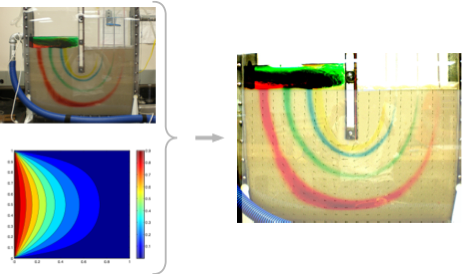

The Tank: Water flow through porous media models water flow through a saturated porous media and introduces the Laplace equation and its application to water flow. The picture above shows the setup of this AAEV. As shown below, the results from both the tank experiment and the Laplace simulation match very well.

For more information, please see the following report: The Tank.
